.30-30 Winchester Ammo — Performance and Top Loads

Emerging just at the end of the Wild West era, the .30-30 Winchester skyrocketed in popularity, quickly becoming one of the most popular hunting rounds in North America. The new smokeless powder offered higher velocities and a flatter trajectory than traditional black powder rounds. Like many other designs by John Moses Browning, the .30-30 revolutionized the industry, and modern ammunition has elevated the round to keep it competitive to this day.

History of the .30-30 Winchester

Introduced in 1895 by Winchester Repeating Arms Company, the .30-30 Winchester was originally designated the .30 WCF (Winchester Center Fire). It was also frequently called .30 Winchester Smokeless, .30/30, and .30-30.

The round has close ties with Winchester’s lever-action rifles, specifically the 1894, and later, the subsequent Model 94. This was the first firearm to chamber the new cartridge after all. When Marlin adopted the cartridge for the Model 1893 rifle, it didn’t want to stamp its competitor’s name “Winchester” on the rifle, so it was designated the .30-30 — representing a .30-caliber bullet loaded with 30 grains of powder. This name caught on and was made official by the mid 1940s. Now, anyone manufacturing a lever-action rifle offers a version chambered in the .30-30.

The .30-30 Winchester was the first American small-bore cartridge utilizing smokeless powder. It was based on the .38-55 Winchester, which was necked down to hold a .308-inch diameter bullet. The cartridge was designed for medium game hunting, and it eventually became THE deer hunting round of the 20th century. Today, the round remains popular for hunting, competition, target shooting, and even self-defense.

.30-30 Ballistic Performance

Bullet Weight, Velocity, Energy, and Trajectory

.30-30 Winchester ammo is available in a number of bullet weights and loadings for different shooting applications. The initial load utilized a 160-grain bullet traveling just under 2,000 fps, yielding close to 1,400 ft/lbs of energy at the muzzle. This was quickly replaced by a 170-grain load capable of hitting 2,200 fps and delivering over 1,800 ft/lbs, which became the new standard.

Higher velocity 150-grain loads are also popular. Overall, bullet weights for the .30-30 range between 125 and 190 grains, the latter offering subsonic performance for suppressor use. With a 100-yard zero, .30-30 typically drops between 6 and 8 inches at 200 yards, and 25 to 30 inches at 300 yards.

Accuracy and Effective Range

Because of its prominent use in tubular magazines, most .30-30 ammo features a round or flat nose bullet, which reduces the ballistic coefficient, limiting its effective range. Energy and velocity drop off fairly quickly, and it is largely considered a 200-yard max hunting cartridge. Most hunters’ shooting abilities are within this range and will not feel restricted by the cartridge’s limitations. It should be noted that at the time it was developed, riflescopes were a rarity, and most shooters were using iron sights in the field.

Recoil and Shootability

.30-30 is known for its incredibly manageable recoil. It’s generally described as a slow shove rather than a sharp kick, with most loads producing an average of 11 ft/lbs of energy.

Felt recoil can vary by rifle, with traditional lever-action rifles with more stock drop transferring more into the shoulder than modern rifles with a straight stock. Either way, it’s still a good round for young and recoil-sensitive shooters wishing to shoot a centerfire rifle caliber. It’s also fun for plinking at the range and extended training sessions.

Penetration and Expansion

Shooters can expect 20 to 30 inches of penetration with the .30-30 Winchester. Traditional soft point ammo tends to penetrate about 20 to 25 inches, while solid copper monolithic rounds can achieve over 30 inches. Because of the slower velocity and heavy bullet design, .30-30 will typically travel through light barriers and bone without much deflection.

Both soft point and hollow point rounds expand to roughly twice their original diameter, resulting in 0.60 to 0.65 inches. .30-30 is known for its excellent weight retention, and quality expanding loads retain 80 to 95 percent of their initial weight. Again, this is due to their moderate velocities, which prevent the intense forces that tear bullets apart.

Hunting with .30-30 Winchester

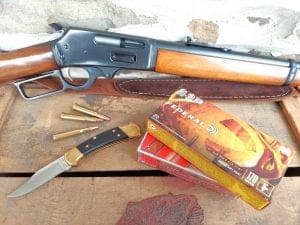

.30-30 is a wildly popular hunting cartridge, especially for deer hunting. It offers sufficient power for medium game within 200 yards, as well as moderate recoil for easy handling for a wide range of people. The lever-action rifle provides ample firepower and a fast reload if follow-up shots are needed, making it a solid choice for feral hogs as well. Additionally, excellent accuracy can be achieved with both iron sights and a scope. Given its rich history in the field, there are plenty of great hunting loads with both soft point and hollow point bullets.

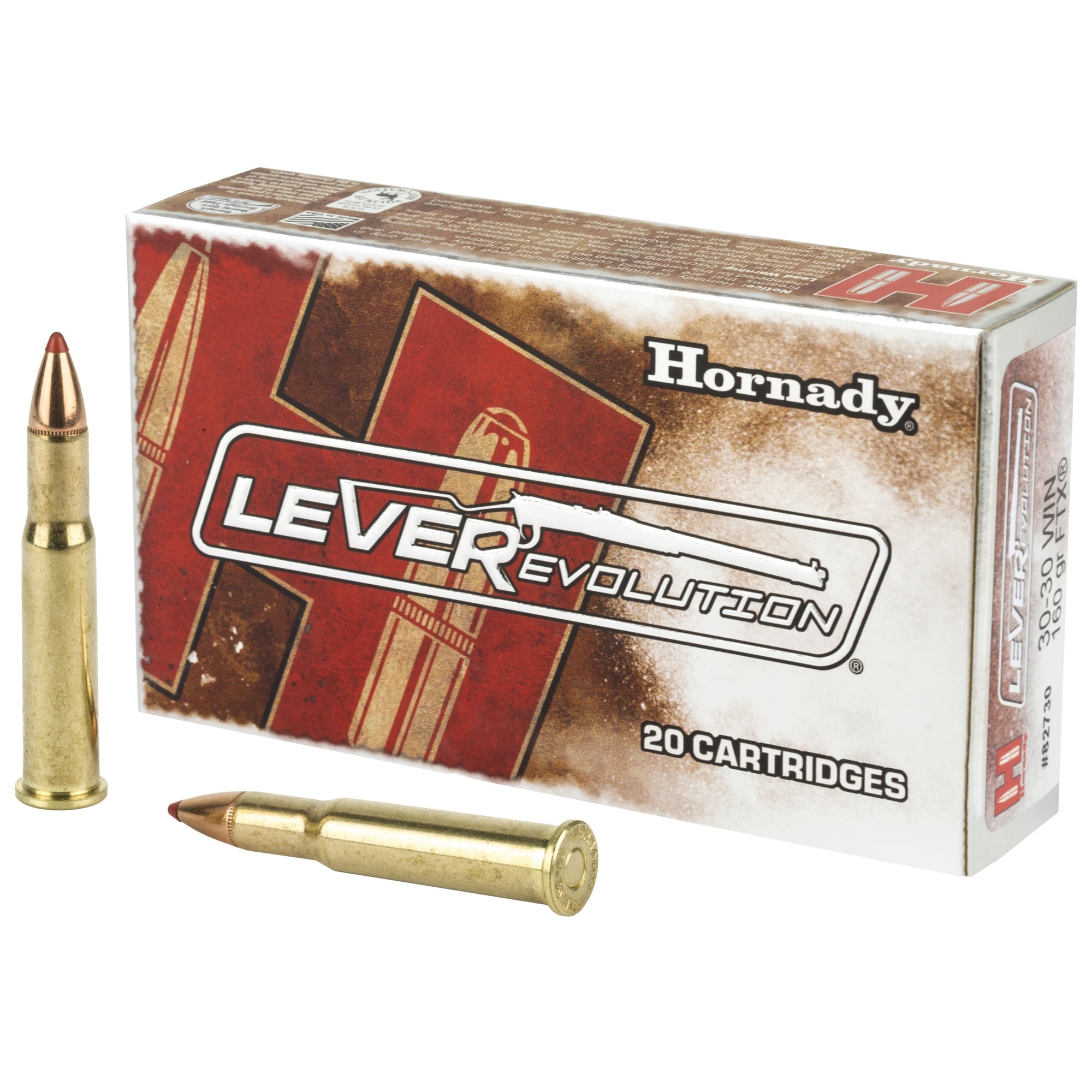

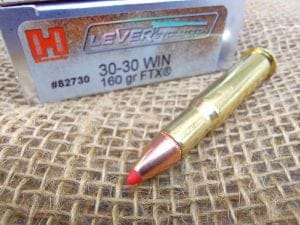

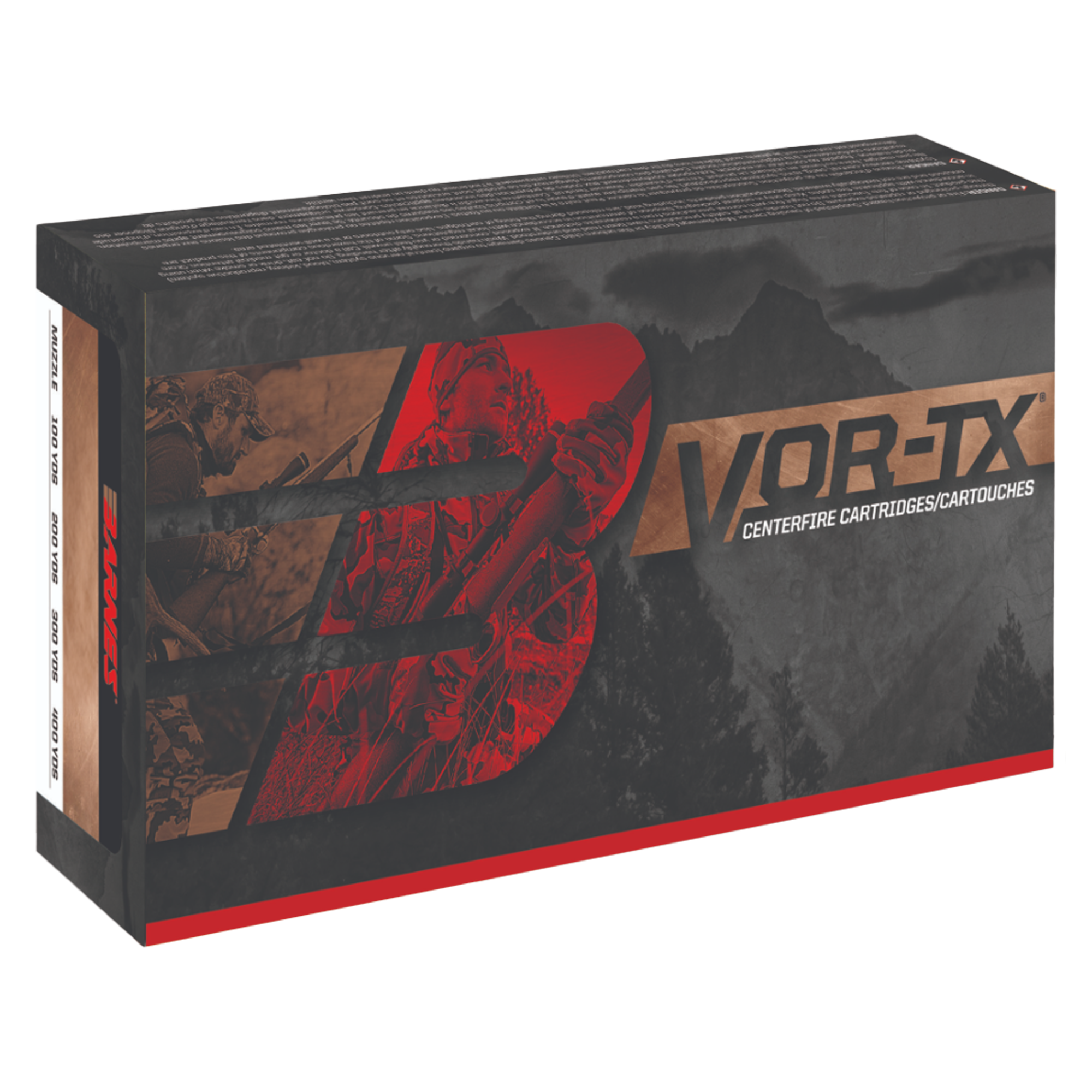

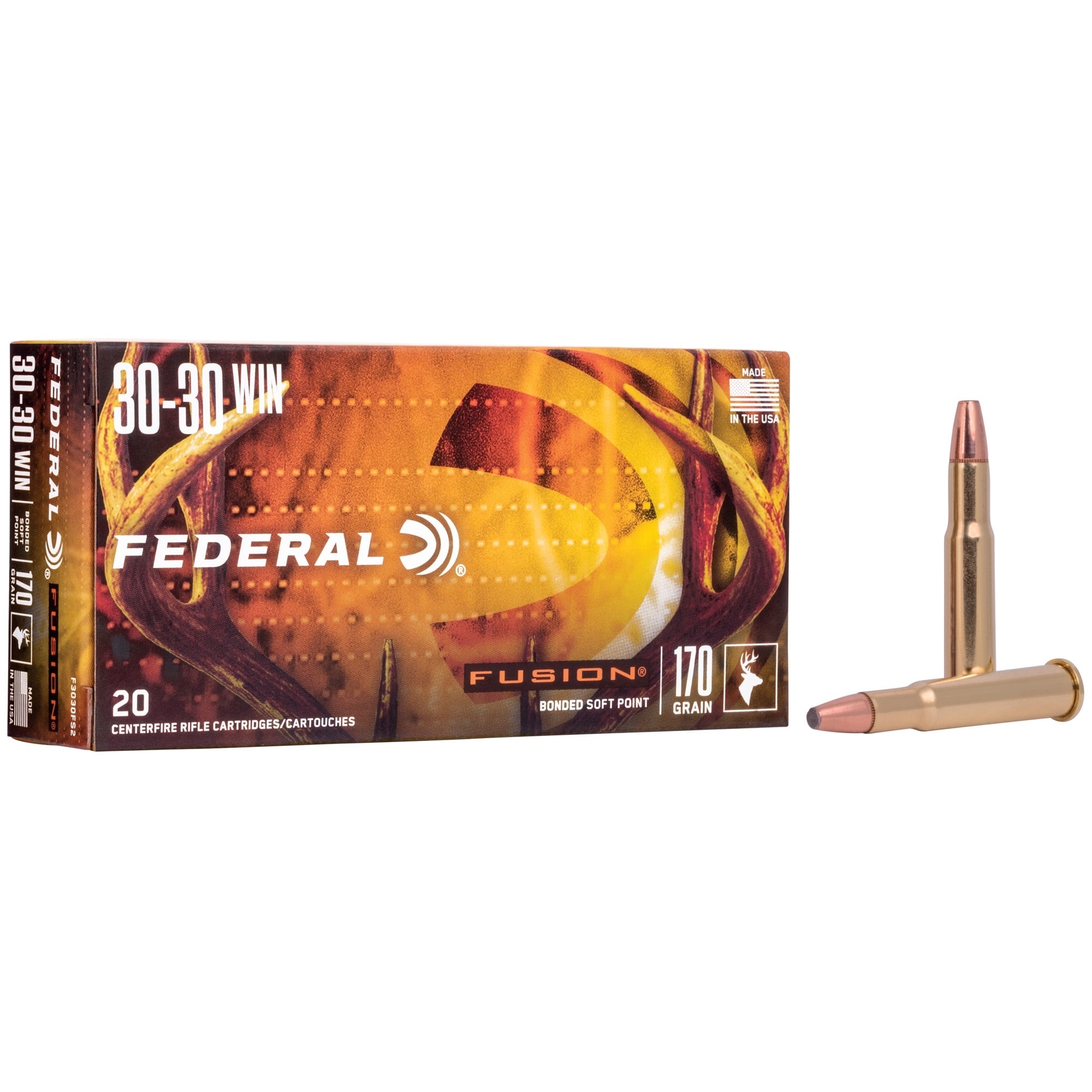

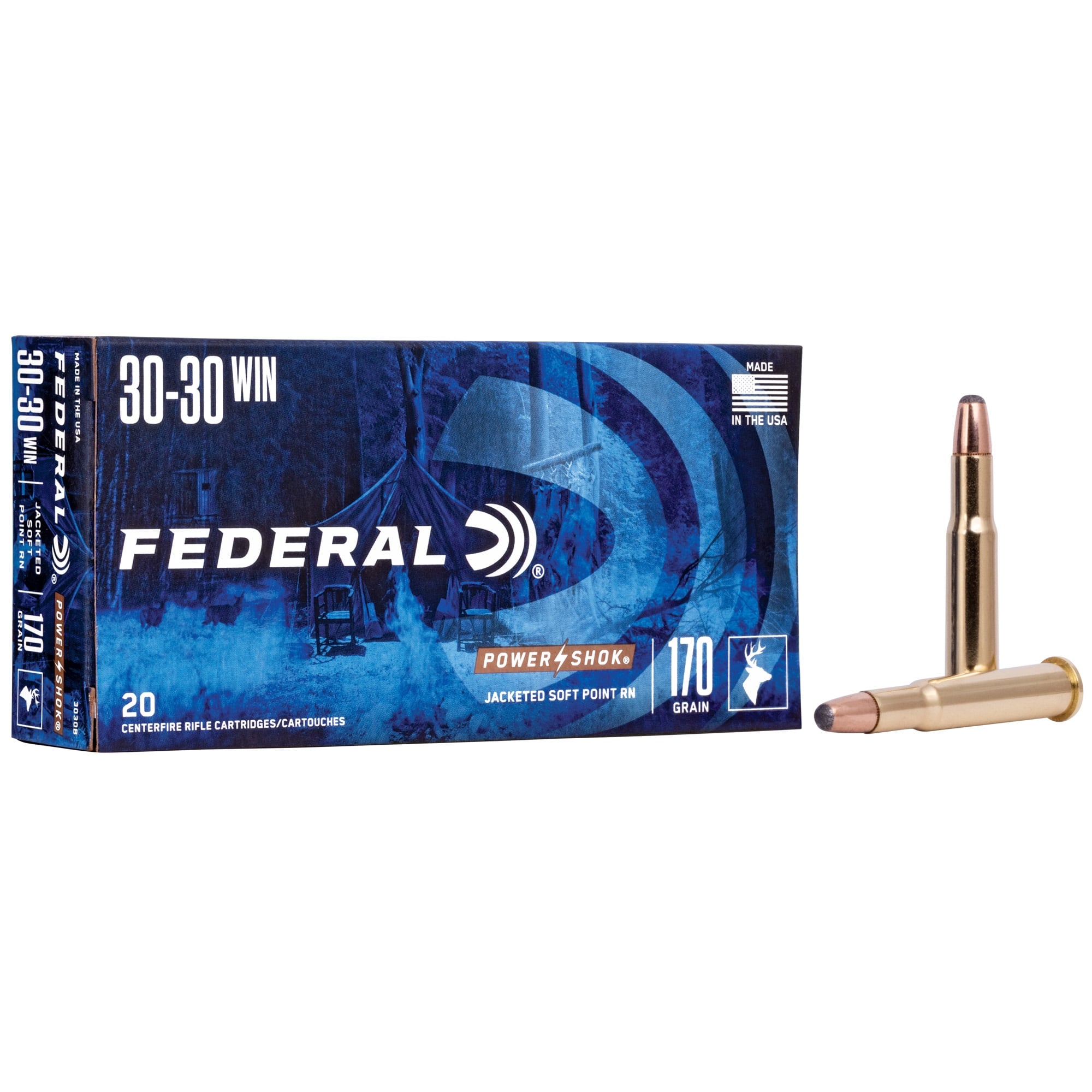

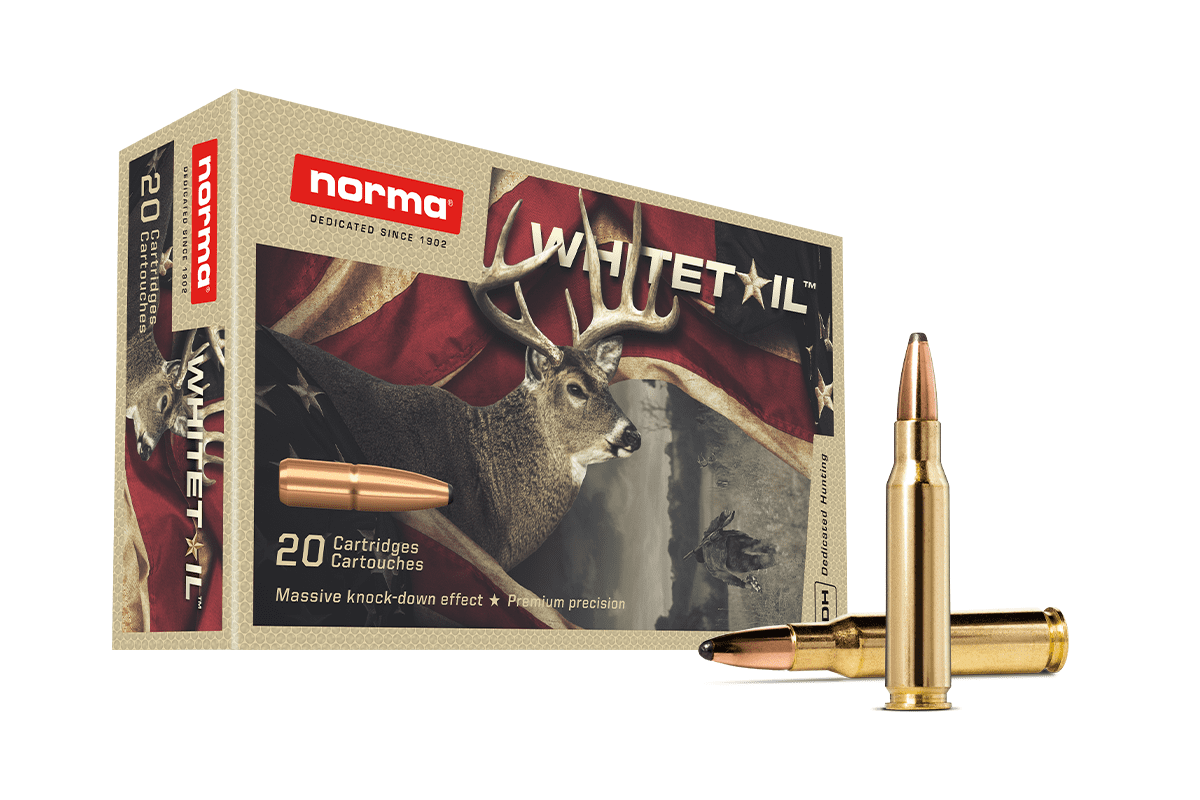

Top Loads

Competition and Target Shooting

.30-30 rifles are incredibly popular for lever-action rifle silhouette matches where shooters use iron sights to engage steel animal targets out to around 200 yards. The .30-30 Winchester is also a fun round for casual plinking and target shooting.

There’s something about slowing down from the semi-auto and getting behind a good lever-action that brings a smile to the face. It’s a great way to train newer shooters on the fundamentals of marksmanship. After a round is fired, the firearm is safe and must be intentionally reloaded manually before firing again.

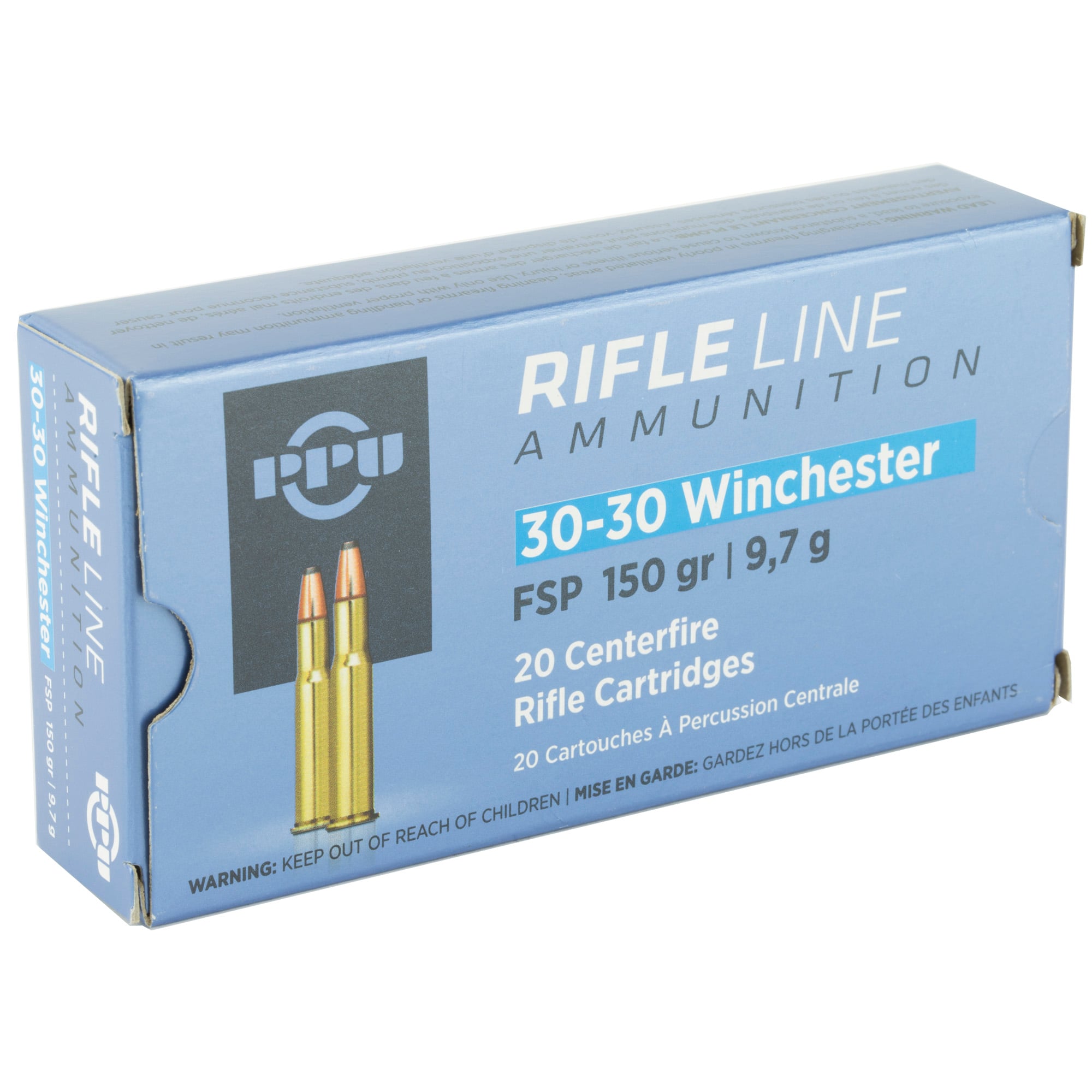

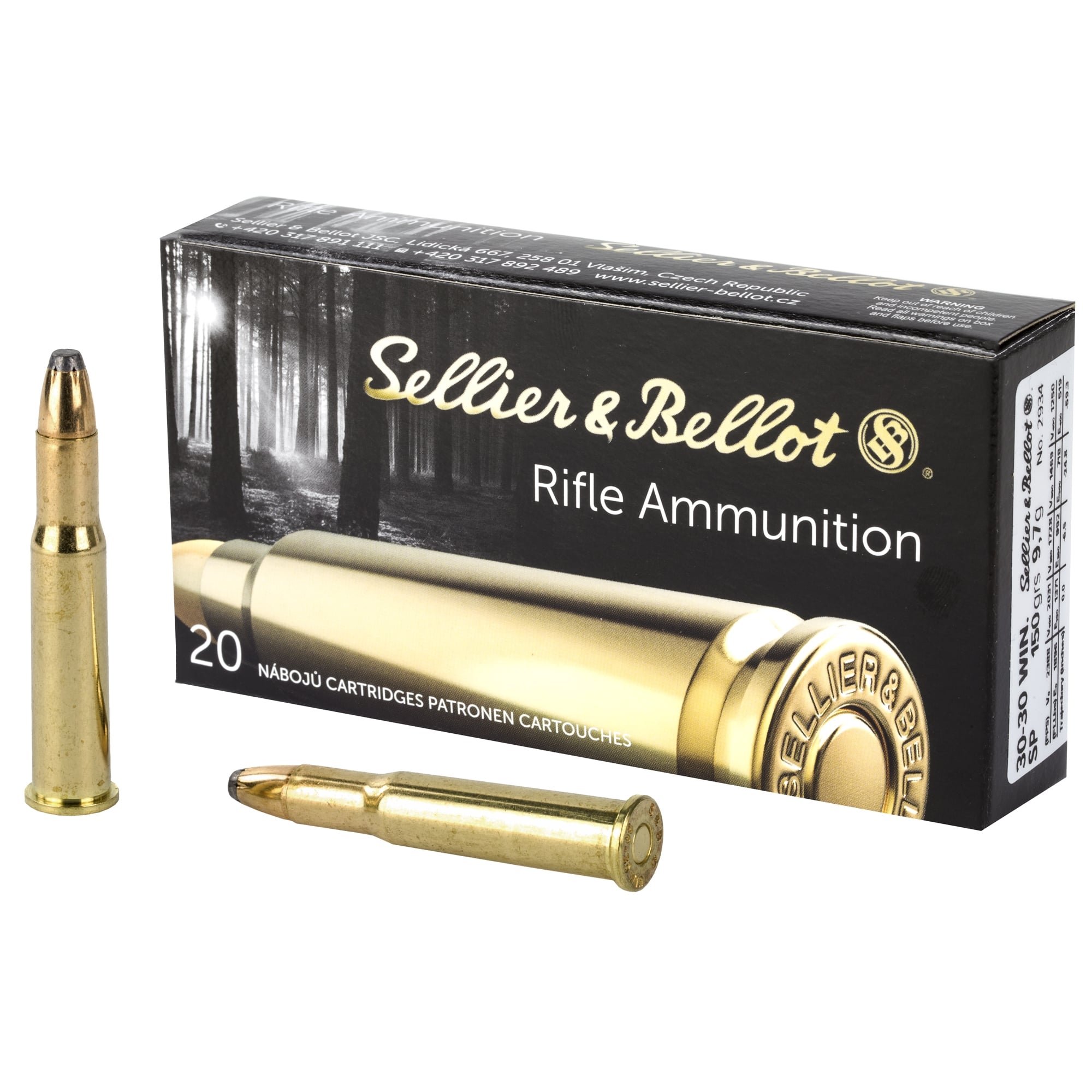

Top Loads

.30-30 for Self-Defense

Although it’s not often recommended in the age of semi-autos, the .30-30 Winchester is a worthy choice for self-defense. Hollow points provide reliable expansion and effective terminal performance.

One of the main advantages of using a lever-action for self-defense is its reliability across a range of different loads of varying power. Because you manually cycle the action, low-velocity loads can be utilized without affecting dependability. This reduces the risk of overpenetration on two-legged targets and improves noise reduction for suppressor use.

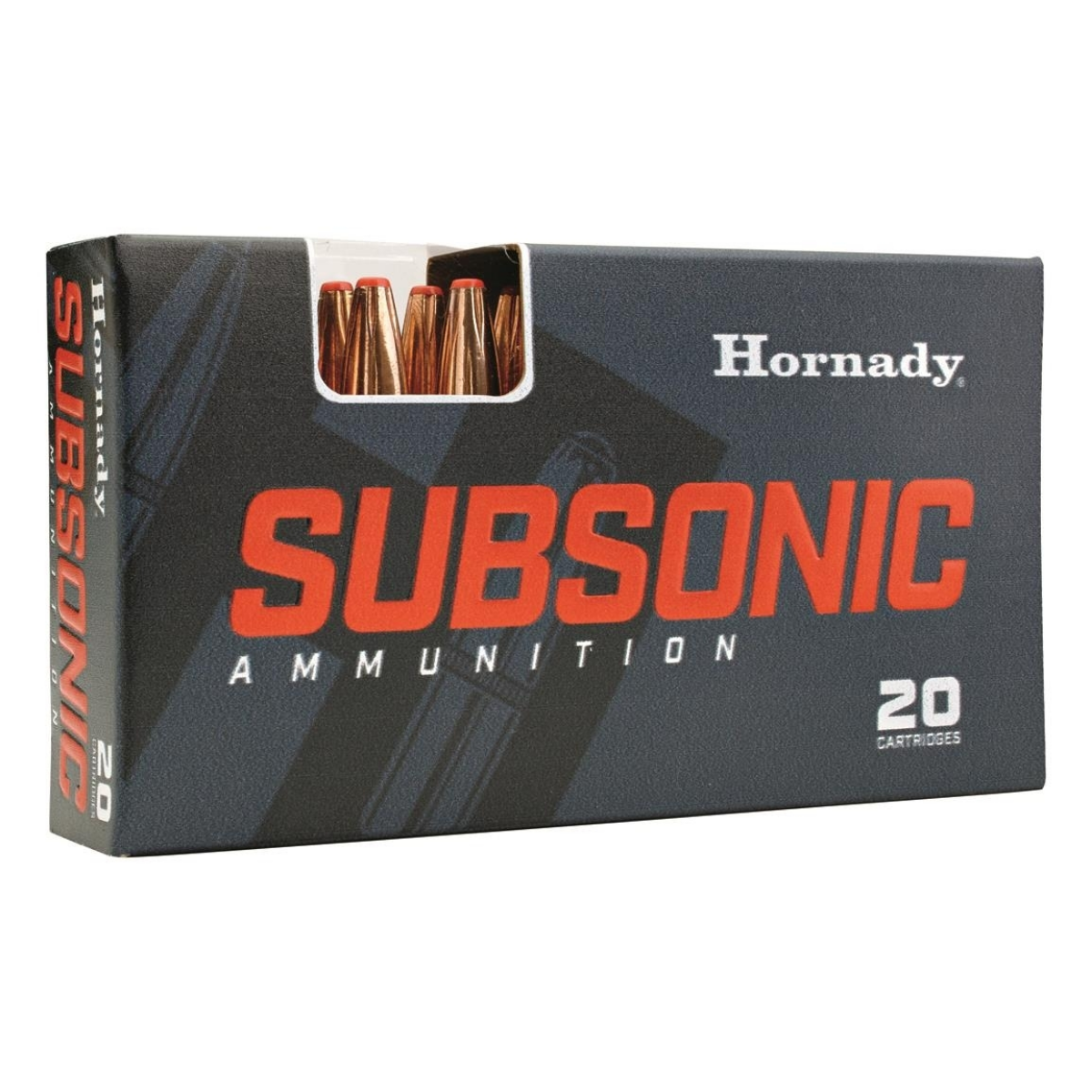

Top Loads

Final Thoughts

Whether it’s for hunting, target shooting, or self-defense, the .30-30 Winchester shines, especially when paired with a quality lever-action rifle. With a number of loadings from trusted manufacturers, there’s .30-30 ammo tailored for optimal performance in a variety of shooting applications. If you go with any of the options mentioned above, you’re sure to experience great results.

How have you used the .30-30 Winchester? What are some of your favorite loads? Share your thoughts in the comments below.
